Moving Items Between Tabs /
Changing Tab Order (Tab Shuffle)

Overview

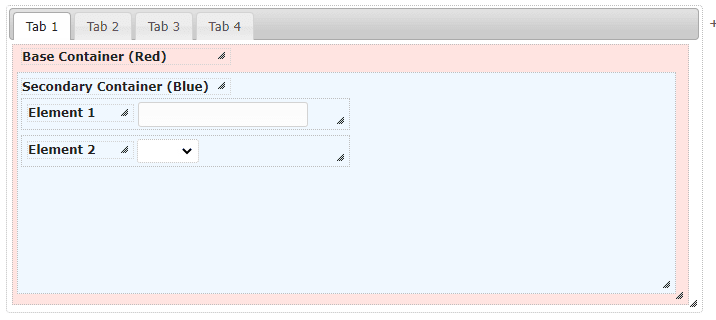

When the tabs within a tabset need to be re-ordered, or if fields need to be moved between tabs, there are specific steps that must be followed to maintain data integrity and to properly reorganize all fields. In the following examples, the red containers are the “base containers”. These are the containers that come with the tab when the tab/tabset is created. The blue containers will be “secondary containers”. Elements 1 and 2 are simply example elements.

Example 1 – Moving a Secondary Container

This example will go over how to move items from one tab to another, where the elements are all within a secondary container. The example task for this case will be to move Element 1 and Element 2 from Tab 1 to Tab 2.

1 The first step would be to move the secondary container outside of the tabset.
2 The next and final step is to navigate to Tab 2 and move the secondary container back into the tabset.

Example 2 – Moving Fields From Base Containers

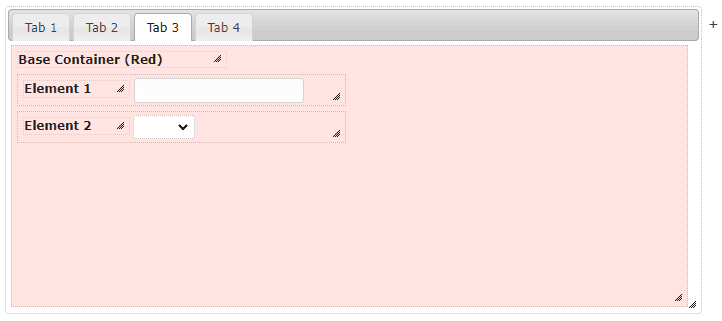

This example will cover how to move elements that are in a base container over to a new tab. The example task for this case will be to move Element 1 and Element 2 from Tab 3 to Tab 4.

1 The first step will be to create a secondary container off to the side of the tabset. This secondary container could also be created within Tab 3, however, that would add another step of moving the container outside of the tabset before moving onto Tab 4.
2 The next step will be to move Element 1 and Element 2 over into the secondary container.

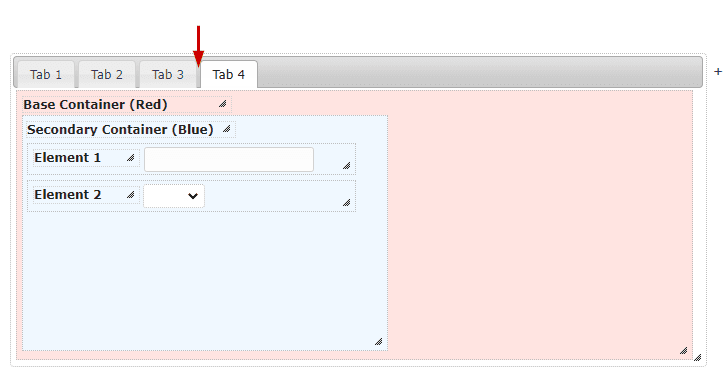

3 Lastly, navigate to Tab 4 and place the secondary container back inside the tabset.

Example 3 – Tab Shuffle

In the event that a new tab is wanted before a pre-existing tab, a “tab shuffle” must be completed. For example, a tab called Extra Tab is wanted before Tab 4.

1 Since tabs can only be added onto the end, Extra Tab must be added and then followed by a new Tab 4 (New Tab 4).
2 Using the previously outlined methods, the elements from Tab 4 can be moved to New Tab 4. Since all elements are inside a secondary container the process will follow what’s outlined in example 1.
3 Now that Tab 4 has been re-created on New Tab 4, the original Tab 4 can be deleted. To do this, click within the tab behind the base container and click “Delete selected”.

Important Considerations

  • Tab 1 should never be deleted. If the tab is no longer required, then a new tabset will have to be made.

  • The base containers should never be deleted or moved out of their original tab. This causes a plethora of issues, namely that the tab is unlikely to load at all since it is looking for a container that no longer exists.

  • All elements should be within the base container at the very least. DO NOT place elements inside a tab but outside of any container. If the objective is to hide elements, the style attribute should be applied with a value of visibility:hidden;.
